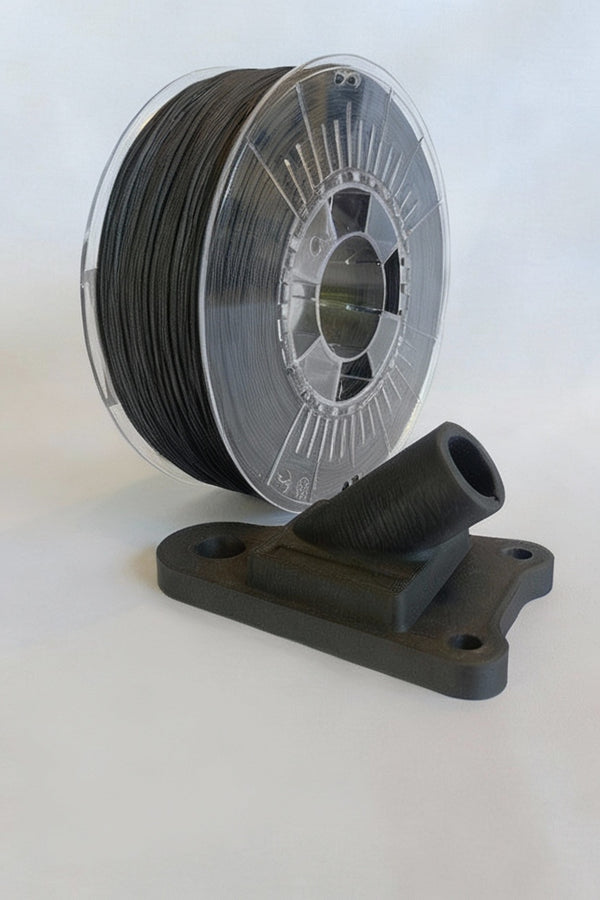

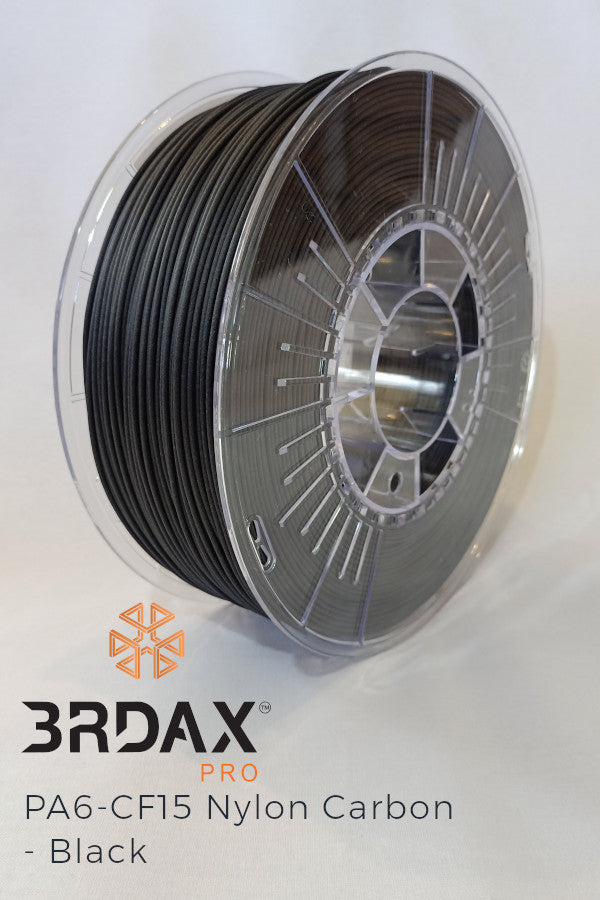

3RDAX™ Pro PA6-CF15 1.75mm
3RDAX™ Pro PA6-CF15 is a high-performance nylon filament reinforced with 15% chopped carbon fibre, not powder. This formulation delivers excellent strength, stiffness, and thermal resistance, making it ideal for functional parts that need to be lightweight yet strong. With a tested heat deflection temperature of 187 °C (ASTM D648), it performs reliably in high-temperature environments and offers excellent resistance to fuel, oils, and solvents. When dried properly, it prints with a clean matte finish and strong interlayer adhesion, making it a trusted choice for engineering-grade applications.
SPECIFICATIONS
Type: PA6-CF15 Nylon - Carbon Fiber
Carbon Fiber: Chopped
Diameter: 1.75mm
Spool net weight: 1KG
Colour: Black
Composition: 85% PA6 (Polyamide 6) + 15% Carbon Fiber
Density: 0.961 g/cm 3
Tensile Strength (XY): 58 MPa
Flexural Strength (XY): 88 MPa
Impact Stength (XY): 45 KJ/m 2
Heat Deflection Temperature: 187°C
Vicat Softening Temperature: 179°C
RECOMMENDED PRINT SETTINGS
Nozzle: 260-280°C
Nozzle Type: Hardened Steel
Bed: 100-120°C
Speed: 40-80mm/s
Enclosure: An enclosure is recommended.
CE and ROHS Compliant
